Simplex H1 4-Port Terminal Block

Installation notes

The Simplex H1 4-Port Terminal Block provides wiring terminations for the simplex Fieldbus H1 4-Port Series 2 Plus card.
Set the keys on the terminal block to D2 to match the simplex Fieldbus H1 4-Port Series 2 Plus card.

Table: Simplex H1 4-Port Terminal Block specifications
Item	Specification
Voltage rating	35 VDC
Maximum current	500 mA
Isolation	Each channel is isolated from each other and factory tested to 1000 VDC.
Mounting	Assigned slot of I/O carrier

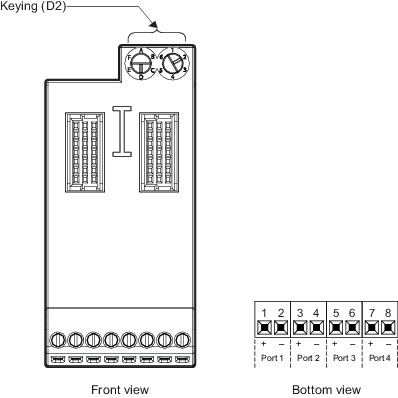

Figure: Simplex H1 4-Port Terminal Block
