| Item | Specification |
|---|---|
| Capacity | Four I/O cards with terminal blocks. |
| Maximum current |
LocalBus (powers I/O cards): 8 A. For large systems, use the LocalBus extenders to add more power. Bussed field power bus (per I/O card): 3.2 A at 30 VDC or 250 VAC for each connection. |
| LocalBus cable lengths |
0.87 m (2.8 ft) 1.2 m (3.9 ft) (standard) 1.53 m (5.0 ft) |

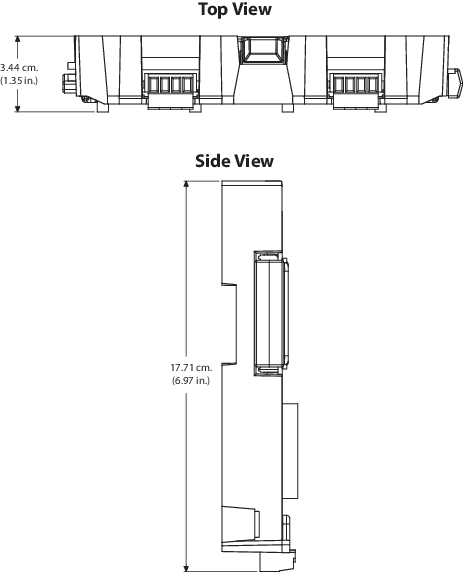

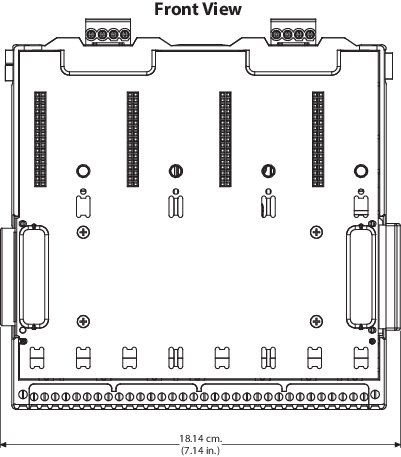

Figure: 4-Wide Horizontal I/O Interface Carrier Dimensions

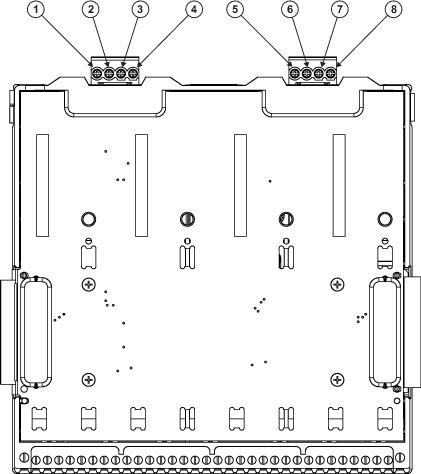

The following figure shows the terminal connections for connecting bussed field power to the 4-Wide I/O Carrier. Note that the positions of the supply and supply return terminals differ from those of the DeltaV I/O carriers.
