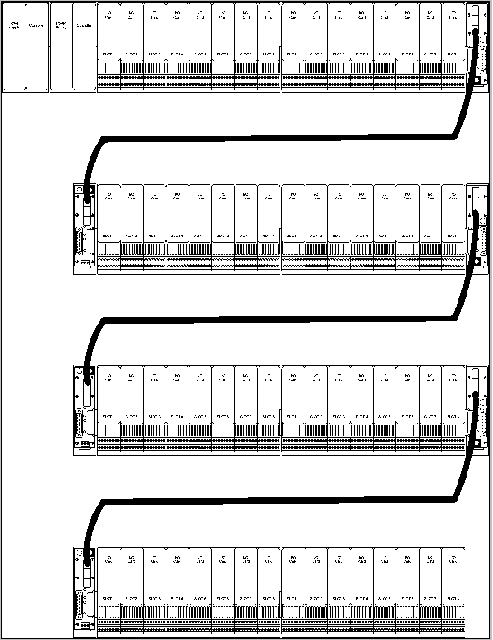

Figure: Single Door Cabinet Installation with Short Cable shows a single door cabinet installation with short cable (.87 meters/2.8 feet). Be sure to not exceed the six carrier limit with this type of installation.
Figure: Double Door Cabinet Installation with Standard
Cable
shows a double door cabinet installation with standard cable (1.20 meters/3.9
feet).
Figure: Custom Installation with Extended Length Cable
shows a custom installation with extended length cable (1.53 meters/5 feet). Be
sure that this configuration does not exceed the maximum LocalBus length of 6.5
meters (21.3 feet).
