Specifications
The DeltaV system supports the Single Port Fiber Switch and the Four
Port Fiber Switch. The Single Port Fiber Switch is an Ethernet switch with one
100BASE-FX port and four 10/100BASE-TX ports. The Four Port Fiber Switch is an
Ethernet switch with four 100BASE-FX ports and one 10/100BASE-TX port. The
switches can be mounted on a DIN rail and provide comprehensive LED
diagnostics.
Table: Single Port and Four Port Fiber Switch Specifications
| Item
|
Specification
|
| Input voltage
|
24 VDC ±20%
|
| Input current
|
- 0.25 A for the
Single Port Fiber Switch
- 0.35 A for the
Four Port Fiber Switch
|
| Link budget
|
- Multimode 62.5/125
µm - max attenuation 11 dB
- Multimode 50/125
µm - max attenuation 8 dB
- Wavelength 1300 nm
|
| Fiber interface
|
100 BASE-FX with MT-RJ receptacle, full
duplex only
|
| Fiber type
|
Refer to the "Setting up the DeltaV Control
Network" topic.
|
| Nominal fiber distance
|
2 km
|
| Twisted pair ports
|
10/100 BASE-T, RJ45 compatible
|
| Cable type
|
Category 5e screened twisted pair (ScTP)
|
| Mounting
|
Vertically on a horizontal DIN rail
|
Top and Bottom Views
The following figures show the top and bottom views of the Single Port
Fiber Switch.

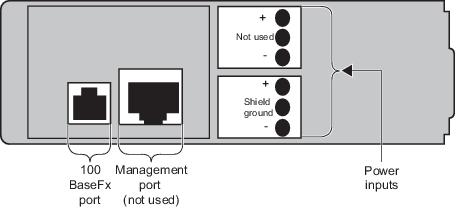

Figure: Top View of the Single Port Fiber Switch

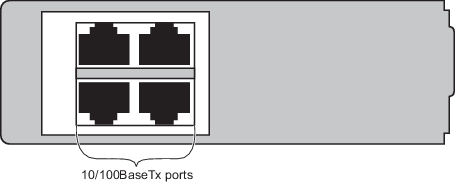

Figure: Bottom View of the Single Port Fiber Switch
The following figures show the top and bottom views of the Four Port
Fiber Switch.

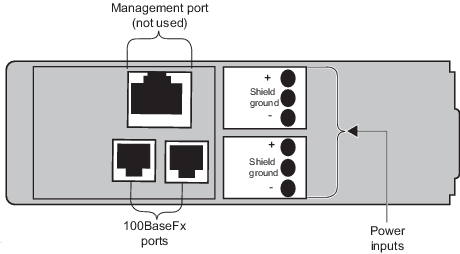

Figure: Top View of the Four Port Fiber Switch

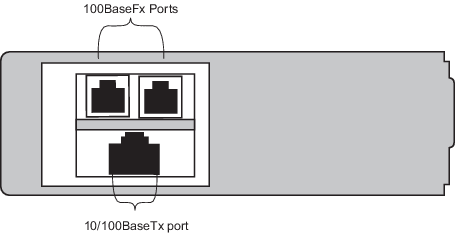

Figure: Bottom View of the Four Port Fiber Switch
