Installation notes

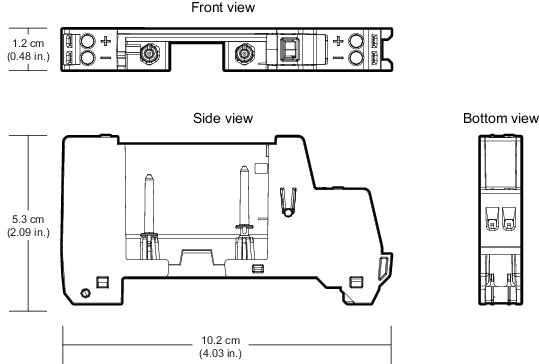

- The I.S. CHARM Address Terminal is preinstalled in the dedicated slot on the I.S. CHARM Baseplate and holds one Address Plug (1-8).
- The I.S. CHARM Address Terminal's keying mechanism sets itself to match the inserted Address Plug (1-8).
- To reset the keying mechanism, remove the Address Plug (1-8) from the I.S. CHARM Baseplate, remove the I.S. Address Terminal, and reset the keying mechanism.
