CHARM Thermocouple / mV Terminal Block specifications

Installation notes

The CHARM Thermocouple / mV Terminal Block installs on the CHARM Baseplate and holds a single Thermocouple / mV input CHARM. It provides the field wiring for the CHARM.
The CHARM Thermocouple / mV Terminal Block's keying mechanism is fixed to allow only the Thermocouple / mV input CHARM.

Table: CHARM Thermocouple / mV Terminal Block specifications
Item	Specification
Number of connections	2
Power rating	5 VDC maximum at 25 mA maximum

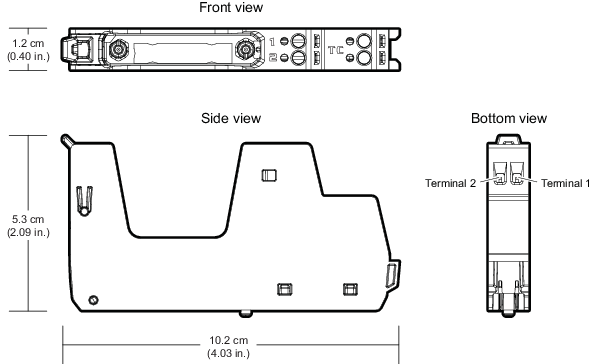

Figure: CHARM Thermocouple / mV Terminal Block
