Address Plug
Installation notes
The Address Plug (1-8) installs in the CHARM Address Terminal in the dedicated slot on the CHARM Baseplate.
Install Address Plug 1 on the first baseplate, Address Plug 2 on the second baseplate, Address Plug 3 on the third baseplate, and so on.
Specifications
Table: Address Plug specifications
Item
Specification
Input power
+6.3 VDC ±3% at 2 mA maximum

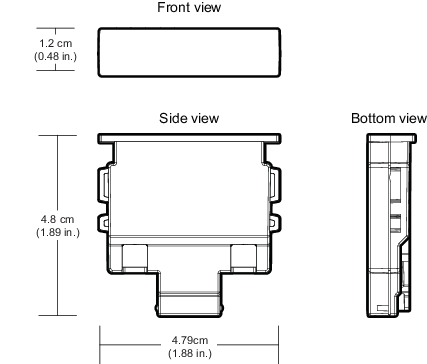

Views and dimensions
Figure: Address Plug
