LS DVC Terminal Block specifications

Installation notes

The LS DVC Terminal Block holds a single LS DVC HART DTA CHARM and provides the keying and field wiring connections for the CHARM.
The terminal block's keying mechanism is fixed to allow only a LS DVC HART DTA CHARM.

Table: LS DVC Terminal Block specifications
Item	Specification
Number of connections	2
Power rating	30 VDC maximum at 30 mA maximum

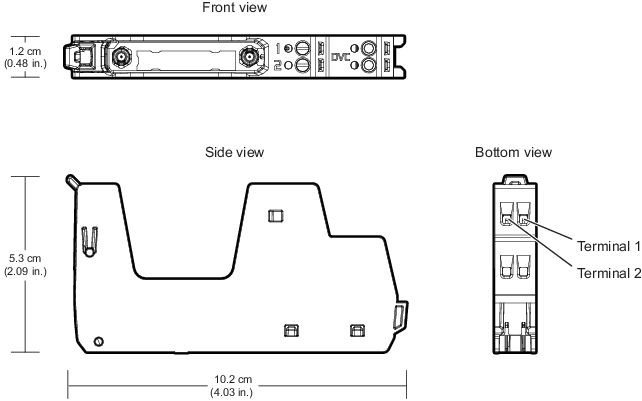

Figure: LS DVC Terminal Block
