Installation notes
- The LS I.S. CHARM Protection Cover installs in any LS I.S. CHARM Terminal Block and is used to protect an unused LS I.S. CHARM Terminal Block from damage and to enable spare wires to be easily connected to ground.

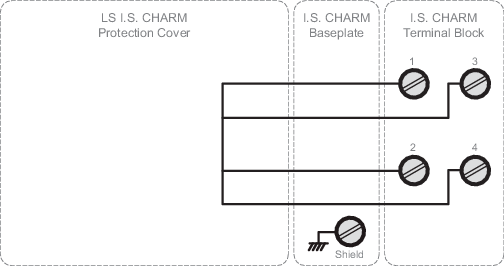

- When the LS I.S. CHARM Protection Cover is installed, all terminals on the LS I.S. CHARM Terminal Block are shorted. Connections to the chassis ground from an unused terminal can be daisy chained to unused terminals on the next LS I.S. CHARM terminal block and LS I.S. CHARM Protection Cover.
- To install the LS I.S. CHARM Protection Cover, open the latch on the LS I.S. CHARM Terminal Block, insert the LS I.S. CHARM Protection Cover, and push the cover until the latch closes.
- The LS I.S. CHARM Protection Cover does not affect the key setting on the LS I.S. CHARM Terminal Block.
