Installation notes

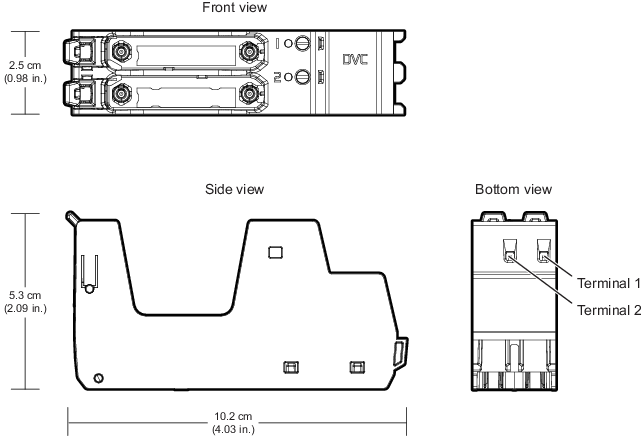

- Each LS Redundant DVC Terminal Block holds two LS DVC HART (Redundant DTA) CHARMs. It provides the keying and field wiring connections for the CHARMs.
- The LS Redundant DVC Terminal Block's keying is fixed to allow only LS DVC HART (Redundant DTA) CHARMs.
- Install the terminal block in an odd and even numbered slot on the baseplate. The lower slot number must be odd and the even slot number must be the next higher number (for example, slots 1 and 2 or slots 3 and 4).
