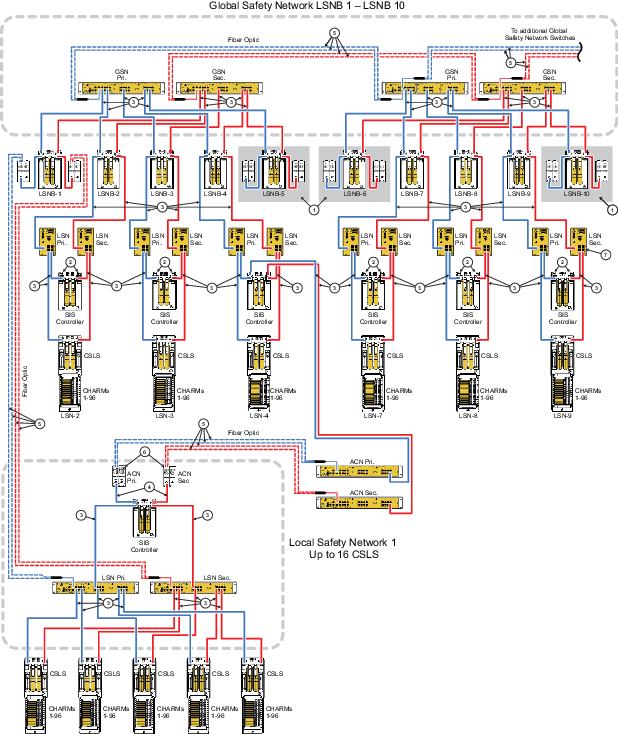

These connections are the same as those for LSNB-1.
|
|
This connection goes to the primary and secondary ACN
switches.
|
|
This is a 100 meter (maximum) straight-through or crossover
Category 5E Screened Twisted Pair (ScTP) cable. The shield on the RJ45
connector connects only to a Faraday cage in the Local Safety Network Bridge
(LSNB), the SZ controller, and the CHARMs Smart Logic Solver (CSLS); not to
these devices' DC ground. Therefore, the RJ45 connectors are floating and the
single point of ground is made at the switch to which these devices are
connected. Build this cable assembly with a shielded, metal-enclosed RJ45
connector on both ends.
|
|
This is a 100 meter (maximum) straight-through or crossover
Category 5E Screened Twisted Pair (ScTP) cable. The shield on the RJ45
connector connects only to a Faraday cage in the LSNB, the SZ controller, and
the CSLS; not to these devices' DC ground. Therefore, the RJ45 connectors are
floating and the single point of ground is made at the attached signal
converter to which these devices are connected. Build this cable assembly with
a shielded, metal-enclosed RJ45 connector on both ends.
|
|
Fiber-optic cable must be used for outdoor
building-to-building communications for immunity to electromagnetic
interference caused by near lightning strikes, for ground isolation between
buildings, and to gain additional distance that goes beyond the 100 meters (328
ft) maximum allowed for screened twisted pair cabling (ScTP).
|
|
This signal converter translates fiber-optic cable based
signals to copper based twisted pair Ethernet signals. Two are required: one
for the primary link and one for the secondary link.
|
|
All DC powered switches in this figure contain a ground
screw. Be sure to attach a ground wire to this screw terminal to ground the
shields of the attached cables. Refer to the switch's installation sheet for
details.
|
