There are two types of LS CHARM Baseplate Migration Panels: LS CHARM Baseplate Migration Panels and LS I.S. CHARM Baseplate Migration Panels. LS CHARM Baseplate Migration Panels can be installed with and without the CHARM Labeling component.
Specifications
| Item | Specification |
|---|---|
|
Capacity |
Two baseplates holding LS CHARMs. Each baseplate can hold up to 12 LS CHARMs. |
|
CHARM Baseplate specifications |
Refer to CHARM Baseplate specifications and I.S. CHARM Baseplate specifications. |
|
Dimensions |
Refer to the images following this table. |
|
Extender cable specifications |
Refer to CHARM Column Extenders and cable |
|
Mounting |
19 inch (48.26 cm) EIA rails 3 Rack Units (U) high |

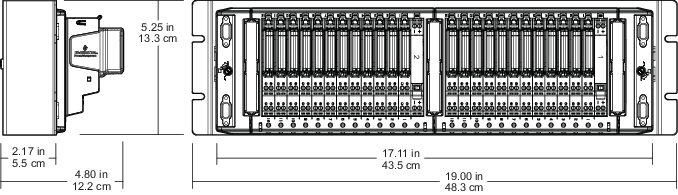

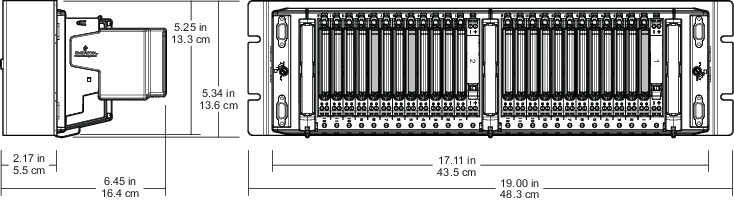

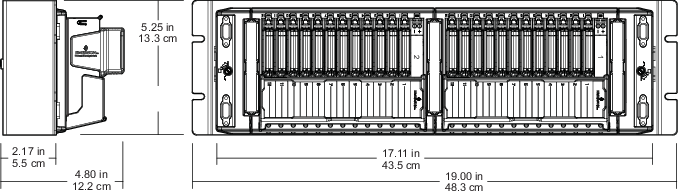

Dimensions

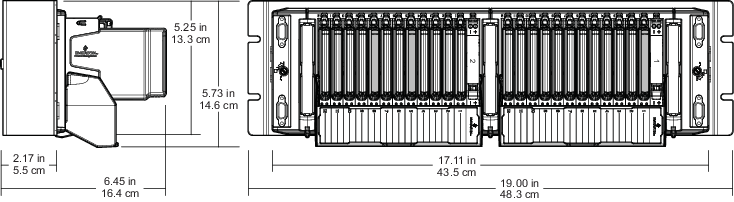

This figure shows the dimensions for the LS I.S. CHARM Baseplate Migration Panel with the CHARM labeling component. The dimensions differ when the labeling component is installed.
