Install I.S. Baseplates

I.S. CHARM Baseplates install exactly like CHARM Baseplates except that a Separation Wall must be installed on every I.S. Baseplate and every component such as Column Extenders and Column Terminators, installed after the baseplates.

Important

I.S. CHARM Baseplates can also be installed under the same CHARMs Smart Logic Solver (CSLS) as standard (non I.S.) CHARM Baseplates. When I.S. CHARM Baseplates and standard CHARM Baseplates are installed under the same CSLS Carrier, standard baseplates must be installed between the CSLS Carrier and the I.S. CHARM Baseplate. A Separation Wall must be installed on every I.S. Baseplate and every component, such as extenders and terminators after the I.S. Baseplates. The following figure shows a standard baseplate (non-I.S.) installed between the CSLS Carrier and I.S. Baseplates.

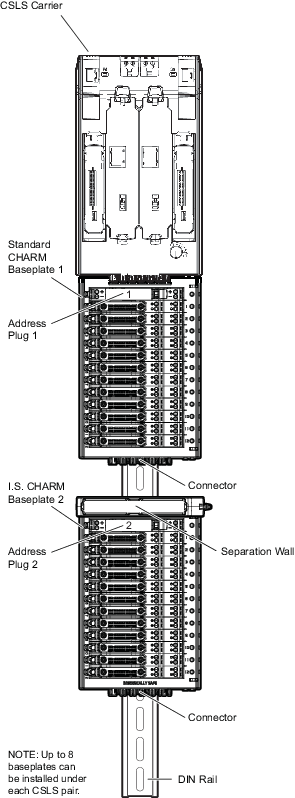

Figure: A standard baseplate installed between the CSLS Carrier and an I.S. CHARM Baseplate


This procedure assumes that a CSLS Carrier is already installed on the DIN rail.

  1. Insert a Separation Wall into the notches on the top of the I.S. CHARM Baseplate.
  2. Fit together the connectors on the top of the I.S. baseplate that you are installing with the connectors on the bottom of the installed CSLS Carrier as you snap the baseplate onto the DIN rail.
  3. Install up to eight I.S. baseplates under the CSLS Carrier. Be sure to install a Separation Wall on each I.S. Baseplate.

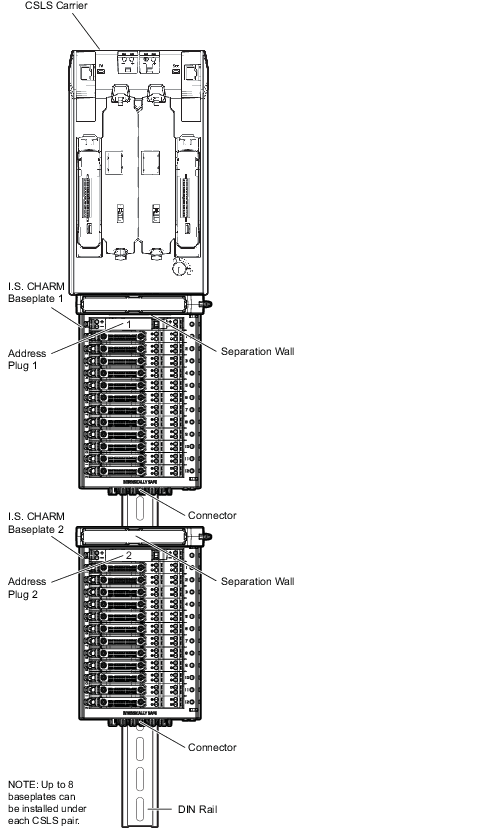

    Figure: Installing I.S. CHARM Baseplates
