Connect the SZ Controller to the Area Control Network and the Local Safety Network

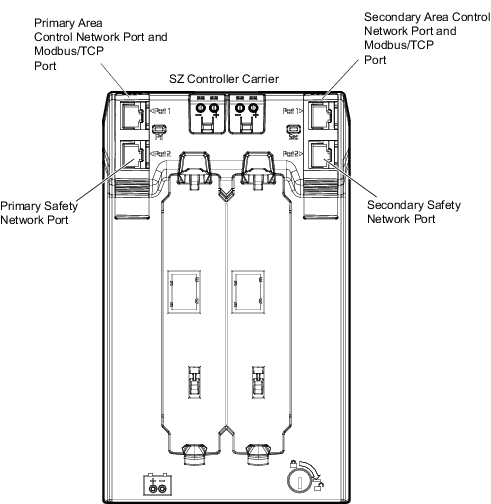

The SZ Controller connects to the DeltaV Area Control Network and the Local Safety Network through the ports on the SZ Controller Carrier.



It is assumed that the Ethernet cable and switches for the Local Safety Network and the DeltaV Area Control Network are installed.

  1. Connect the primary Area Control Network Port on the SZ Controller Carrier to the primary Area Control Network switch.
  2. Connect the secondary Area Control Network Port on the SZ Controller Carrier to the secondary Area Control Network switch.
  3. Connect the primary Safety Network Port on the SZ Controller Carrier to the primary Local Safety Network switch.
  4. Connect the secondary Safety Network Port on the SZ Controller Carrier to the secondary Local Safety Network switch.
