Connect power to Local Safety Network Bridges or SZ Controllers

Redundant 24 VDC power is delivered from bulk power supplies to Local Safety Network Bridges or SZ Controllers through the Dual Universal Safety Carrier. It is recommended that the bulk power supply is connected to a surge suppression/filter device.

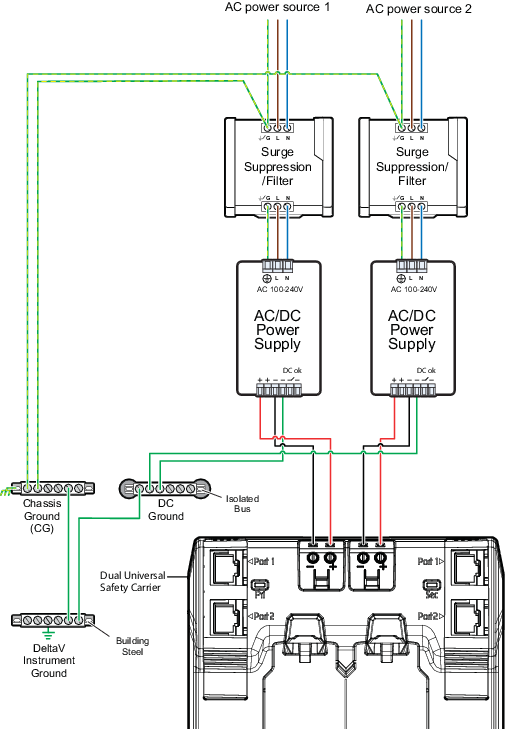

Figure: Powering and grounding LSNBs or SZ Controllers


For this procedure, it is assumed that redundant bulk 24 VDC power supplies and surge suppression/filter devices are already installed.

  1. Connect the AC power that is feeding the bulk power supplies to surge suppression/filter devices.
  2. Connect the bulk power supplies to the power terminals on the Dual Universal Safety Carrier.
  3. Ground the power supplies as shown in the image.
