Install SZ Controllers onto the carrier

SZ Controllers install in the SZ Controller Carrier.

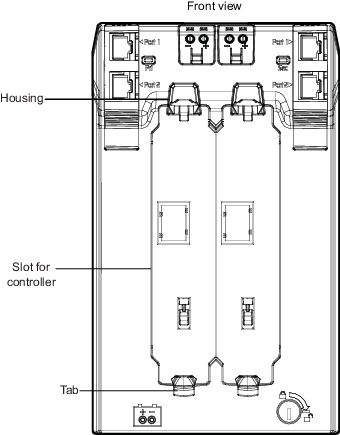

  1. Align the shallow opening on the bottom of the controller with the tab on a carrier slot and align the top of the controller with the housing on a carrier slot.


  2. Push the controller to snap it into the slot.
    Install two SZ Controllers for redundancy.
  3. To remove a controller, depress the button on the top of the controller and pull the controller out of the slot.
