Install an SZ Controller Carrier on the DIN rail

The SZ Controller Carrier holds redundant SZ Controllers. It has redundant 24 VDC connectors for providing power to the controllers, redundant (primary and secondary) ethernet ports for connection to the Area Control Network, and redundant (primary and secondary) ethernet ports for connection to the Local Safety Network.

No tools are required to install the SZ Controller Carrier on the DIN rail. A latch on the back of the carrier snaps it into place on the DIN rail.

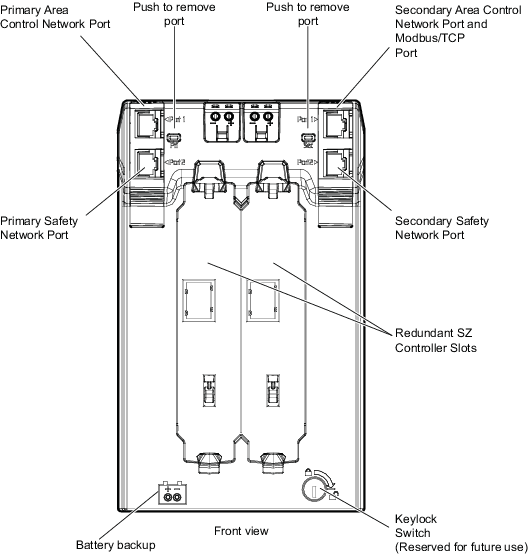

Figure: SZ Controller Carrier
