Install LS I.S. CHARMs

LS I.S. CHARMs install in I.S. CHARM Terminal Blocks on the I.S. CHARM Baseplate.

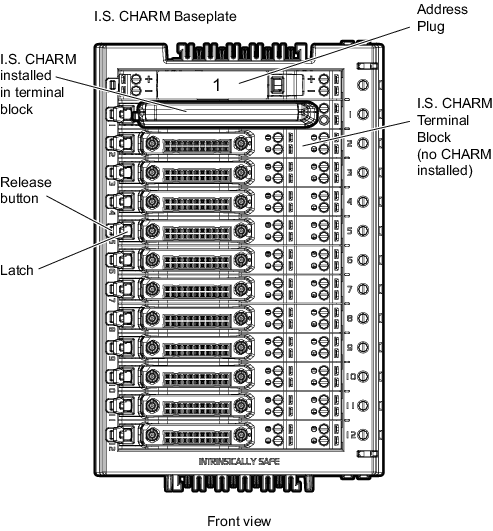

Figure: Installing an LS I.S. CHARM


  1. Open the latch on an I.S. Terminal Block.
  2. Insert an LS I.S. CHARM into the terminal block and push the LS I.S. CHARM until the latch closes.
    Note

    Most I.S. CHARM Terminal Blocks are automatically keyed to the first LS I.S. CHARM installed; however, the I.S. CHARM Thermocouple mV Terminal Block has a fixed key setting .
