Phase logic module detail display (PLM_DT)

The phase logic module detail display in DeltaV Operate allows the user to do the following:

• Showing phase logic module name and description

• Showing phase alarms

• Providing a means to acknowledge alarms

• Showing phase details (value of request register and request parameters)

• Providing a means to acknowledge requests

• Showing diagnostic data

• Showing restart type

• Showing failure state

• Providing a means to select the default monitor on which to present the detail display

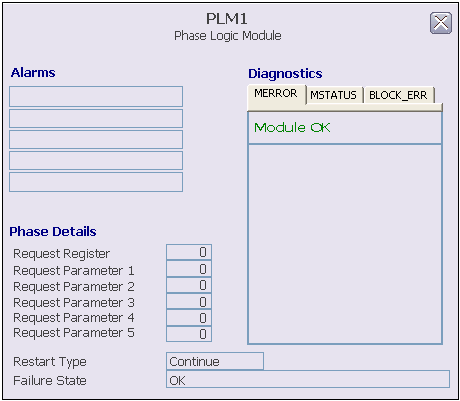

Phase Logic Module Detail Display (PLM_DT)
