Unit phase detail display

The unit phase detail display in DeltaV Operate provides the following functions:

• Shows phase name and class

• Shows phase status (enabled, time limit, phase size)

• Shows phase details (value of request register and request parameters)

• Provides a means to acknowledge requests

• Shows restart type

• Shows failure state

• Provides a means to select the default monitor on which to present the detail display

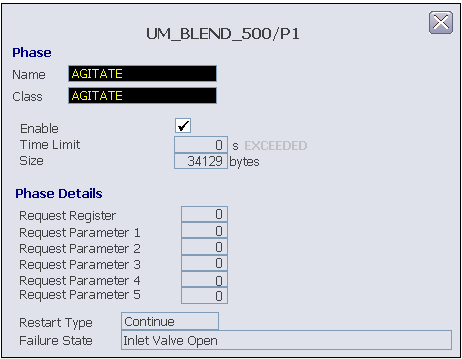

Unit Phase Detail Display (UPH_DT)

The unit phase detail display is accessed through the unit phase faceplate display.
