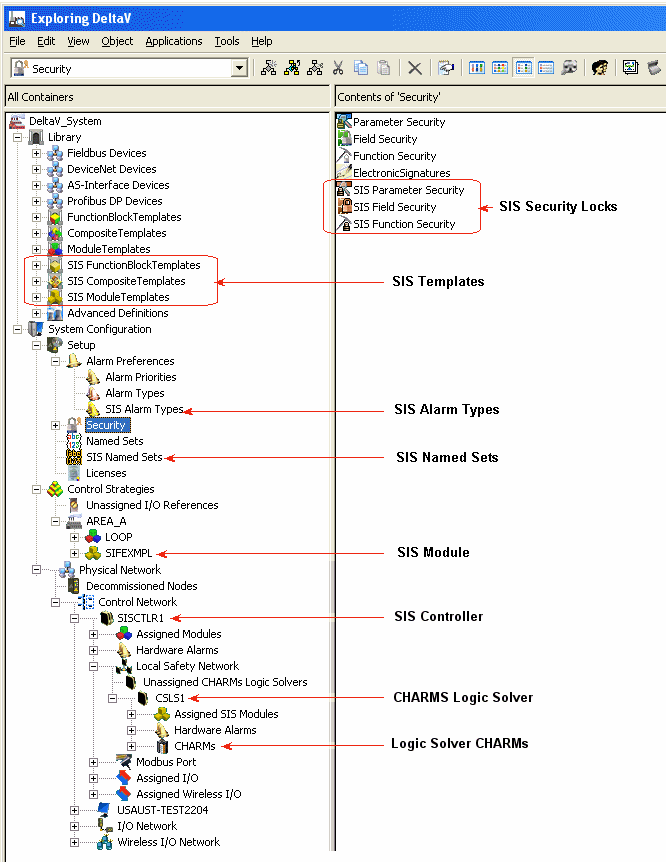

The DeltaV SIS CSLS software components are integrated with the DeltaV software. Enabling CHARMs Smart Logic Solvers from System Preferences adds DeltaV SIS objects to the DeltaV Explorer and Control Studio so you can configure DeltaV SIS CHARMs Smart Logic Solvers and SIS modules. For example, the following figure shows the DeltaV Explorer after the CHARMs Logic Solvers preference has been enabled and some configuration has been completed. For simplicity, the figure shows the simplest CSLS system possible: One SISCTLR and one CSLS.
