HARTDEV_fp (HART device alarm faceplate)

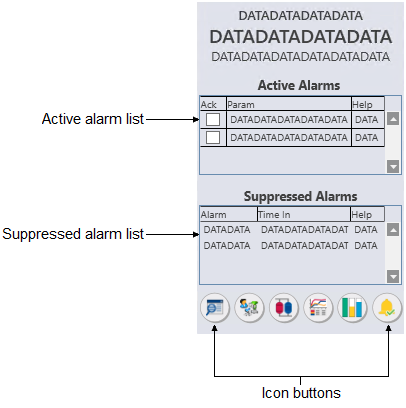

Configuration view of the HART device alarm faceplate (HARTDEV_fp)



The HARTDEV_fp is used to manage alarms for mechanical and optimization assets that support PlantWeb alerts. The following list describes the major components that are present on the HARTDEV_fp.
Alarm list (active)
Provides a condensed version of an alarm summary and scrollable list of the module's current active alarms.
  • Ack column --> Shows the state of the alarm, which is represented by one of the following symbols:
    Alarm state Ack column
    Active/unacked Empty field
    Active/acked Check mark
    Inactive/unacked Empty box
  • Param column --> Shows the alarm name or parameter. The text and colors are as configured for the alarm's current state.
  • Help column --> Indicates the type of Alarm Help available for the corresponding alarm. The column contains one of the following icons:
    Icon Description
    Alarm Help is enabled.
    Alarm Help is not enabled but the user has the privilege to edit Alarm Help.
    No icon Alarm Help is not enabled and the user does not have the privilege to edit Alarm Help, or the system does not have a license for alarm help.
Note:
The alarm list on the Continuous Unit Module faceplate (UMC_fp) provides a full alarm summary rather than a modified one.
Alarm list (suppressed)
Provides a condensed version of an alarm summary and scrollable list of the module's current suppressed alarms.
  • Alarm --> Shows the name of the suppressed alarm.
  • Time in --> Shows the time the alarm was suppressed.
  • Help column --> Iindicates the type of Alarm Help available for the corresponding alarm. (See a description of these icons in the active alarm list description.)
Icon buttons
Icon Description
Opens the module's detail display.
Opens AMS Device Manager.
Opens the module's primary control display.
Opens Process History View.
Opens the module's faceplate.
Acknowledges all alarms visible in the faceplate's alarm list.
