ALM_FO_SUP_fp (First-out Alarm Suppression module faceplate)

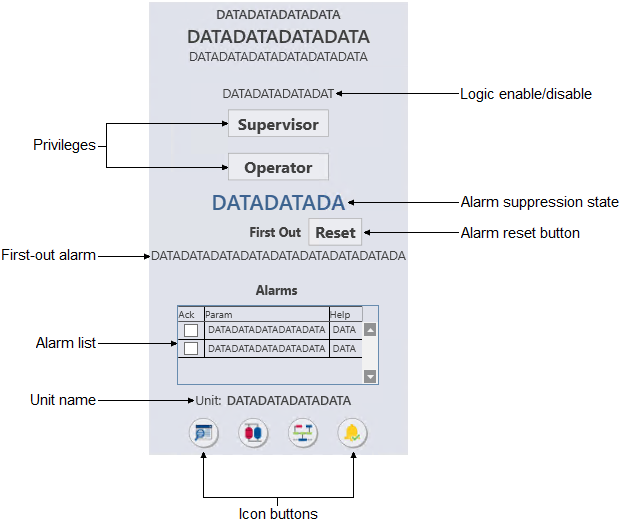

Configuration view of the First-out Alarm Suppression module faceplate (ALM_FO_SUP_fp)

The ALM_FO_SUP_fp is used with the FO_ALM_SUP module template . The following list describes the major components that are present on the ALM_FO_SUP_fp.
Logic enable/disable
If logic is configured to arm or disarm the module under certain conditions, click this button to enable or disable the logic.
Supervisor/Operator privileges
The Supervisor field indicates that the supervisor has privileges to arm or disarm the module. The Operator field indicates that the operator has privileges to arm or disarm the module.
Alarm suppression state
Indicates the state - Disabled, Normal [module is armed], or Tripped.
Alarm reset button
Resets all alarms to their original configuration (alarms that were suppressed are unsuppressed).
First-out alarm
Shows first-out alarm.
Alarm list (active)
Provides a condensed version of an alarm summary and scrollable list of the module's current active alarms.
  • Ack column --> Shows the state of the alarm, which is represented by one of the following symbols:
    Alarm state Ack column
    Active/unacked Empty field
    Active/acked Check mark
    Inactive/unacked Empty box
  • Param column --> Shows the alarm name or parameter. The text and colors are as configured for the alarm's current state.
  • Help column --> Indicates the type of Alarm Help available for the corresponding alarm. The column contains one of the following icons:
    Icon Description
    Alarm Help is enabled.
    Alarm Help is not enabled but the user has the privilege to edit Alarm Help.
    No icon Alarm Help is not enabled and the user does not have the privilege to edit Alarm Help, or the system does not have a license for alarm help.
Note:
The alarm list on the Continuous Unit Module faceplate (UMC_fp) provides a full alarm summary rather than a modified one.
Unit name
Shows the unit name.
Icon buttons
Icon Description
Opens the module's detail display.
Opens the module's primary control display.
Opens the module in Control Studio.
Acknowledges all alarms visible in the faceplate's alarm list.
