NN_Block_1_ (Neural Network GEM class)

NN_Block_1_ GEM

Note:

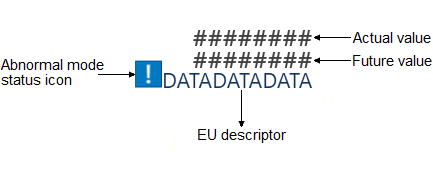

This figure shows the GEM at a 200 percent magnification.
The NN_Block_1_ GEM is used with the Neural Network (NN) function block to show the actual input and future output process values.
Abnormal mode status icon
Provides indication when Mode is not as expected. It is visible when either of the following is true:

  • the Actual mode of the function block is not equal to the Normal mode

  • the Actual mode of the function block is not equal to the Target mode

Actual value
Shows the current process input value.
Future value
Shows the future process output value.
EU descriptor
Shows the A_UNITS field of the applicable scaling parameter.
