HP_MA1_N_ GEM class (High Performance MA1_N_analog)

Note:

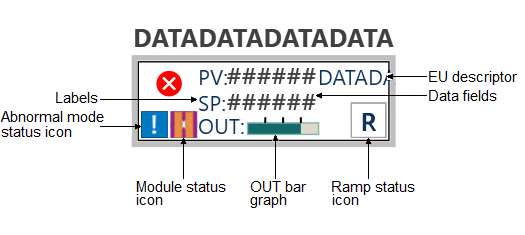

This figure shows the GEM at a 200 percent magnification.

This GEM is used for loop indication of PID loops where the data value is of key importance and the percentage of scale is not.

The following list describes the major components that may be present on an HP_MA1_N_ GEM. Click a link to see a description of that component.
