MPCSISO_Block_1_ (Model Predictive Control single input single output GEM class)

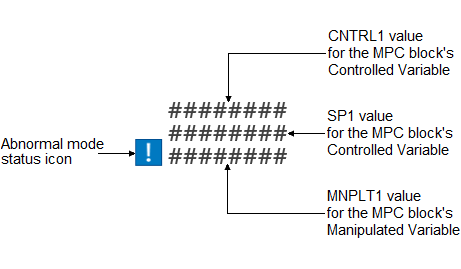

MPCSISO_Block_1_ GEM

Note:
This figure shows the GEM at a 200 percent magnification.
Abnormal mode status icon
Provides indication when Mode is not as expected. It is visible when either of the following is true:

  • the Actual mode of the function block is not equal to the Normal mode

  • the Actual mode of the function block is not equal to the Target mode

CNTRL1 value
Shows the CNTRL1 value for the MPC block's Controlled Variable.
SP1 value
Shows the SP1 value for the MPC block's Controlled Variable.
MNPLT1 value
Shows the MNPLT1 value for the MPC block's Manipulated Variable.
