Radar plot element

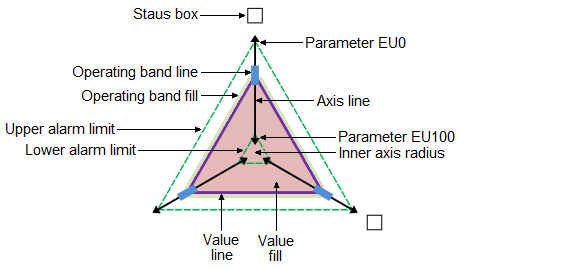

This topic describes the components that appear on a radar plot element.

Alarm limits

The alarm limits visualize the upper and lower alarm limit boundaries defined for that parameter.

Axis line

The axis line visualizes the mapped parameter. When the current value moves outside the scale range, an arrow appears at the end of the axis line.

Operating band line

The operating band line visualizes the operating range defined for that parameter.

Operating band fill

The operating band fill visualizes

Parameter EU0 and EU100

EU0 and EU100 visualize the scale range defined for that parameter.

Status box

The status box indicates the status of the data quality. If an operating range is configured for a plot value, and the current value moves outside the operating range, the status box fills with the color configured for operating range violations.

The status box also shows alarm icons when a module is in an alarm state.

The status box is not visible when all data in the parameter expression is readable, the plot value has good status, and no actions are configured for this plot value.

Value line and value fill

The value lines connect at the point where the current value of each parameter is plotted on its axis.

The value fill visualizes the area inside the value lines.

When all values are within their defined operating range, they form a normal shape. When a value falls out of the defined range, the shape formed by the value lines appears abnormal, providing an easy way for operators to observe when values are deviating from their defined operating range.
