UPh_dt (Unit Phase function block detail display)

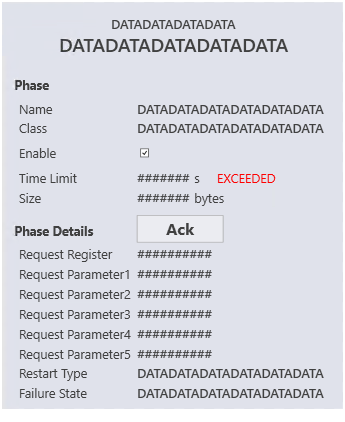

Configuration view of the Unit Phase function block detail display (UPh_dt)

The UPh_dt is used with unit phases. The following list describes the major components that are present on the UPh_dt.

Phase

Phase name

Shows the name of the active phase.

Class

The phase class from which this phase is derived.

Enable

The phase status - enabled when checked.

Time limit

The time elapsed (in seconds) since the current state began.

Size

The size of the phase in bytes.

Phase Details

Provides the phase details, including the request register, request parameters 1 through 5, restart type, and failure state.

ACK button

Manually acknowledges and clears the phase requests.
