The following table shows the maximum numbers of VCRs and function blocks supported by the DeltaV system.
|
Item |
Maximum Supported |
|---|---|
|
Publisher VCRs |
35 |
|
Subscriber VCRs |
50 |
|
Total VCRs |
50 |
|
Function blocks assigned to fieldbus devices(1) |
64 |
|
Function blocks assigned to the H1 card(1) |
32 |
(1) Refer to fieldbus Control Strategy Procedures for additional information on function block assignment limits.

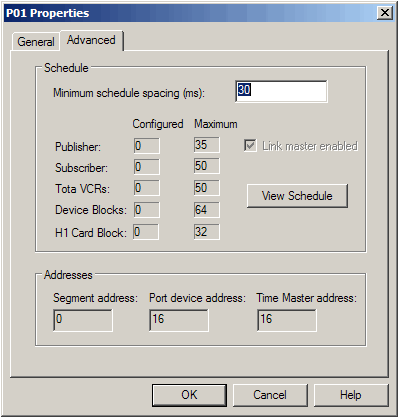

The Advanced tab of the Port Properties dialog shows the currently configured VCRs and function blocks and the maximum numbers supported.
