Motor and valve module detail display (DL_DTX)

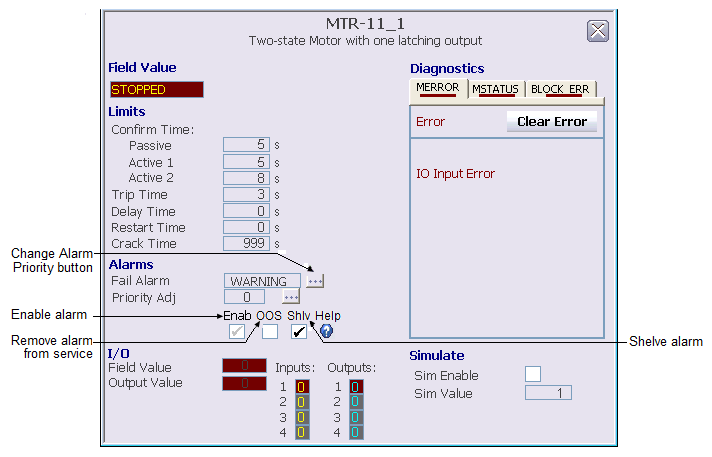

Figure: DeltaV Operate View of the Motor and Valve Detail Display. This example is DL_DT0.

The motor and valve detail displays provide you with access to frequently modified parameters for the motor and valve modules as well as status and diagnostics information. There are nine variations to a similar detail display, involving the number of rows appearing in the Interlocks section. DL_DT0.DET does not have an Interlocks section. DL_DT1.DET through DL_DT8.DET contain a corresponding number of interlock conditions. The figure above shows an example of a DL_DT0.DT  detail display.
