The following
diagrams are examples of typical networks that include DeltaV OPC UA clients
and servers and third-party OPC UA clients and servers.

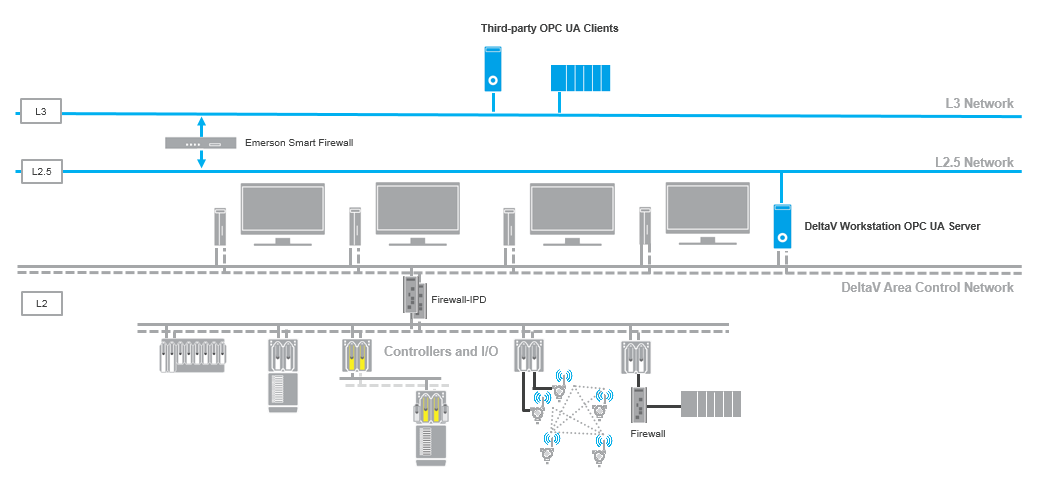

DeltaV ProfessionalPLUS
workstations and application workstations can be configured as OPC UA servers
and connect to third-party OPC UA clients. Refer to the diagram for a typical
installation.
Figure: DeltaV workstation OPC UA server and third-party clients

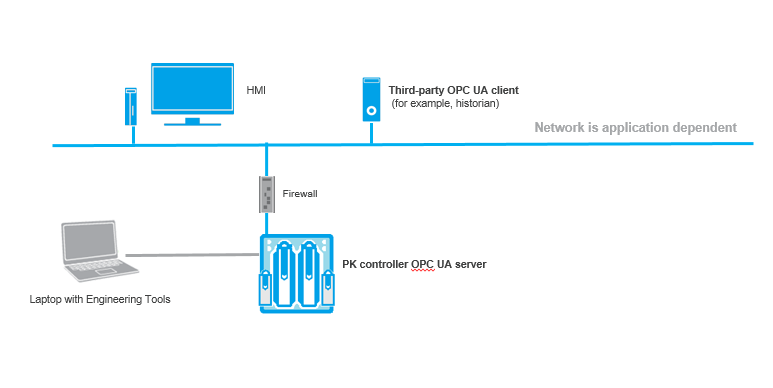

DeltaV PK controllers can be
configured as OPC UA servers and connect to third-party OPC UA clients. Refer
to the diagram for a typical installation.
Figure: DeltaV PK controller OPC UA server and third-party
client

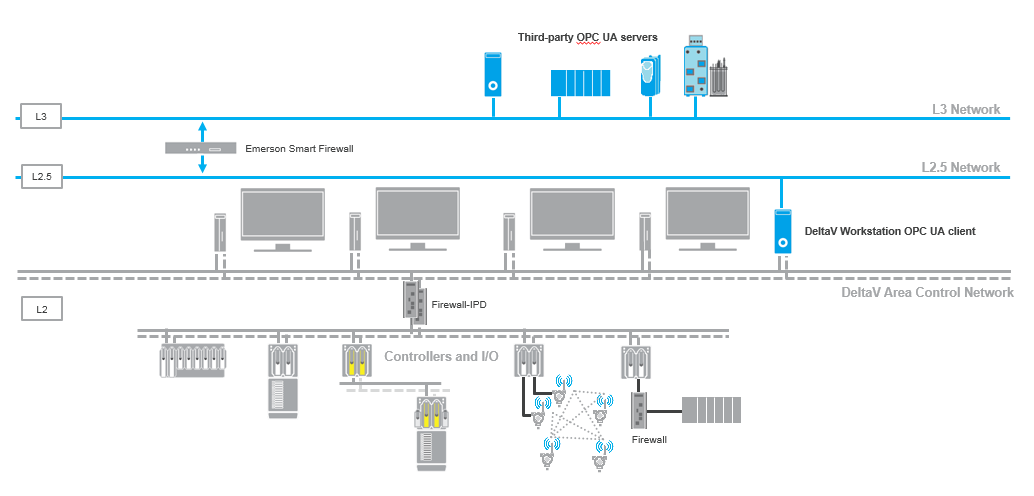

DeltaV ProfessionalPLUS
workstations and applications stations can be configured as OPC UA clients and
connect to third-party OPC UA servers. Refer to the diagram for an example
installation with third-party servers on the level 3 network.
Figure: DeltaV workstation OPC UA client and third-party servers

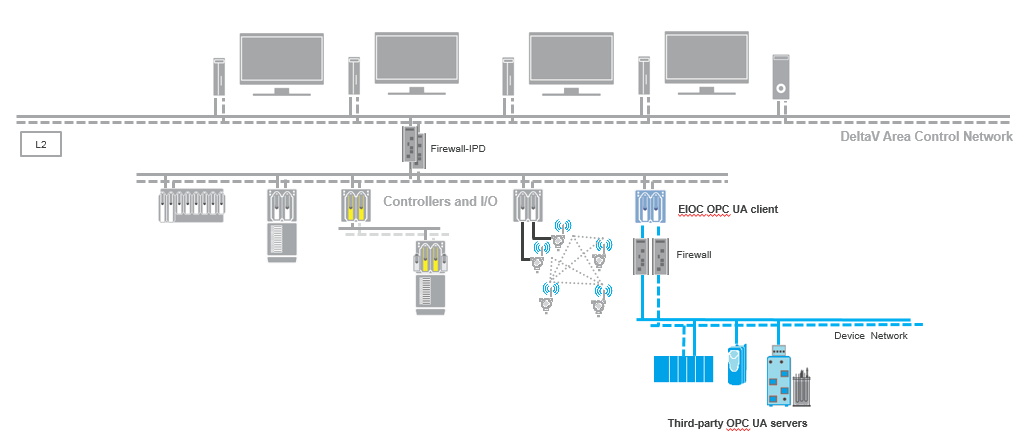

DeltaV Ethernet I/O cards can
be configured as OPC UA clients and connect to third-party OPC UA servers.
Refer to the diagram for an example installation with third-party servers on
the device network.
Figure: DeltaV EIOC OPC UA client and third-party servers
