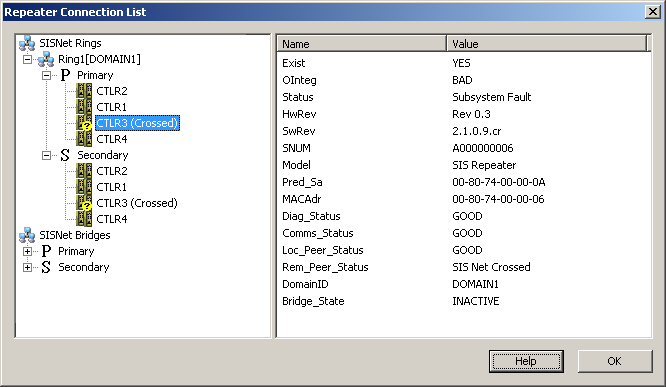

In this example there are four SISNet Repeater pairs. The fiber connections into the SISNet Repeater on CTLR3 have been crossed. This causes the SISNet Repeaters on CTLR3 to receive the wrong traffic, the indication of Crossed on CTLR3 indicates what the problem is and where it is occurring.
