Logic Solver Discrete Output function block

The LSDO function block drives a Logic Solver output channel (for example, a Discrete Output channel) to manipulate a solenoid or other final element. In a typical application the block's input is from an output of a Logic Solver Cause and Effect Matrix (LSCEM) block.

CAUTION!

Avoid renaming any LSDO block in a running system. If you rename the block, and REQUIRE_RESET is True, the block's output OUT_D will be de-energized when the block is downloaded.

The LSDO block does not support modes.

Figure: LSDO Function Block

The following diagram shows the internal components of the function block:

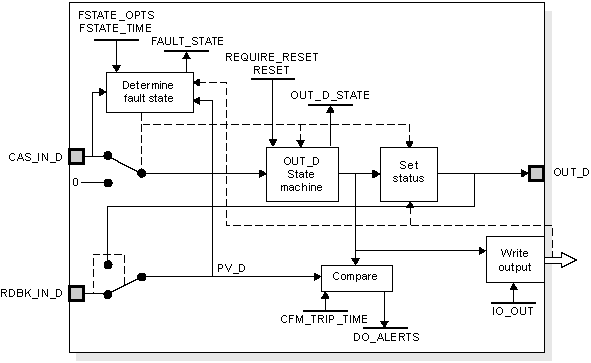

Figure: LSDO Function Block Schematic Diagram
