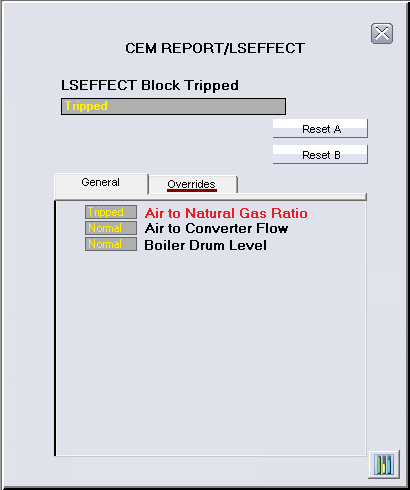

General tab (LSEFFECT faceplate)

This tab includes:

• A text value for the output description, DESC_OUT.
• The output value of OUT_D.
• The description of each input (DESC_INn).
• The value of INPUT_STATE (Disabled, Normal, Delayed, Tripped) for each input.
• IN_Dn.
• RESET_A button.
• RESET_B button.
• A counting Delay timer for each input is visible to the left of the description. It is visible when Input_state is deplayed.
• When an override is present, Overrides is underscored in red.
