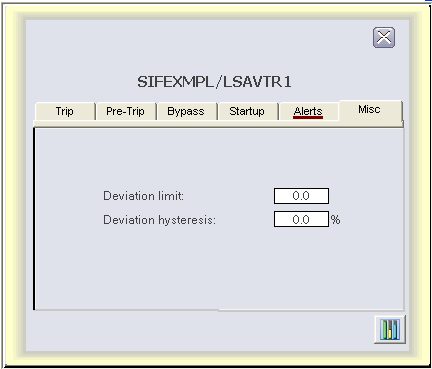

The following items are contained on the Misc tab of the LSAVTR function block faceplate:
-
Deviation limit - A data entry box and text label for DEV_LIM is visible when the runtime-only parameter NOF_INPUTS is greater than 1 (visible unless this is a 1oo1 voter). The UNITS field of IN_SCALE is shown to the right of the data entry box.
-
Deviation hysteresis - A data entry box and text label for DEV_HYS is visible when the runtime-only parameter NOF_INPUTS is greater than 1.
