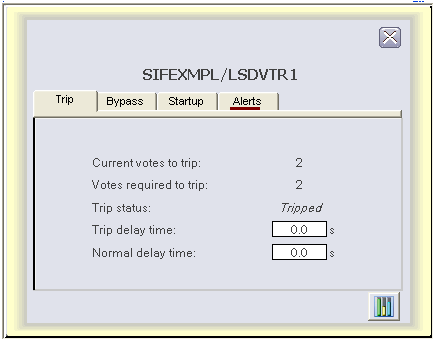

The following items are contained on the Trip tab of the LSDVTR function block faceplate:
-
Current votes to trip - A value field and text label for current number of trip votes, TRIP_VOTES.
-
Votes required to trip - A value field and text label for A_NUM_TO_TRIP.
-
Trip status - A text value field and text label for TRIP_STATUS. A numeric value field for DELAY_TIMER is visible when TRIP_STATUS is " - delayed."
-
Trip delay time- A data entry box and text label for TRIP_DELAY.
-
Normal delay time - A data entry box and text label for NORMAL_DELAY.
