Secure writes from DeltaV Diagnostics

DeltaV Diagnostics uses the Secure Write Mechanism to send commands to Logic Solvers.

The following commands for a Logic Solver are available:

• Lock

  Note

  Locking removes forced inputs, which may cause a plant trip.

• Unlock

• Switchover

• Force Reset on Active (All outputs go to zero.)

• Force Reset on Standby

Note that Force Reset has no effect on a simulated Logic Solver card.

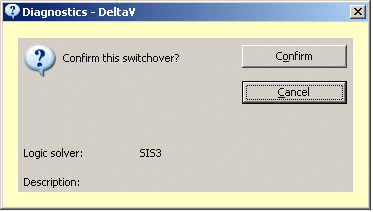

The following is an example of a secure write confirm dialog in DeltaV Diagnostics.

Figure: Confirm Dialog in DeltaV Diagnostics
