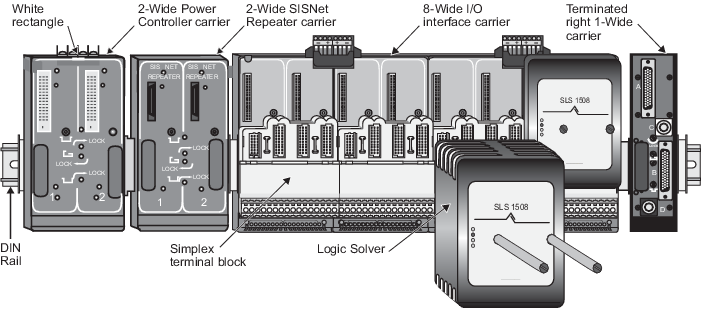

Logic Solvers install on the terminal blocks in odd numbered slots (1,3,5,7) on the 8-wide carrier. Simplex Logic Solvers take two slots and redundant Logic Solvers take four slots.
Locate the Logic Solver terminal block on the I/O interface carrier.
Align the connectors on the back of the Logic Solver with the connectors on the front of the terminal block and push to attach.
