Providing power

Provide power to the Logic Solvers

Note

Read the Caution in the Providing power topic before proceeding.

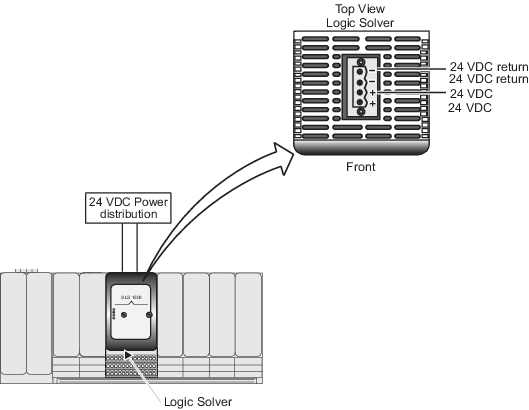

  1. Locate the removable 24 VDC screw terminal connectors on the top of the Logic Solver.
  2. Connect power supply positive (+) to the positive (+) connector on the Logic Solver and power supply negative (-) to the negative connector on the Logic Solver.
