Voltage Monitor specifications

The Voltage Monitor can be used with DeltaV SIS hardware to drive a Logic Solver's Discrete Input channel or a Series 2 DI Dry Contact channel based on the output of the SIS Relay module. As shown in the image, the Voltage Monitor has the following connections:

Four pin connections for connecting input to DC or AC power sources
Four pin connections for connecting outputs to two SLS DI channels
Four pin connections for connecting outputs to two DI, Dry Contact channels

Table: Voltage Monitor specifications
Item	Specification
Input power rating per channel	15 mA @ 24 VDC to 230 VDC 15 mA @ 120 VAC to 230 VAC
Mounting	Horizontal DIN rail⁽¹⁾

⁽¹⁾ Mounting on a vertical DIN rail requires derating the operating temperature range. Refer to the "Environmental and heat dissipation specifications" topic for more information.

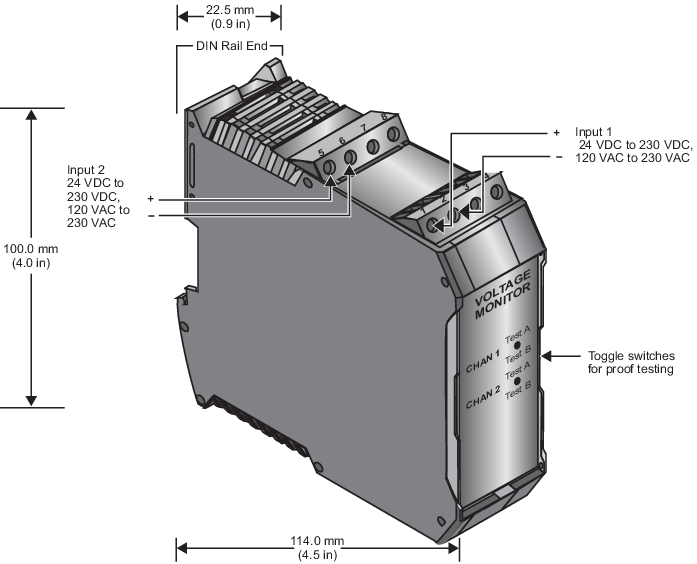

Figure: Voltage Monitor top view and dimensions

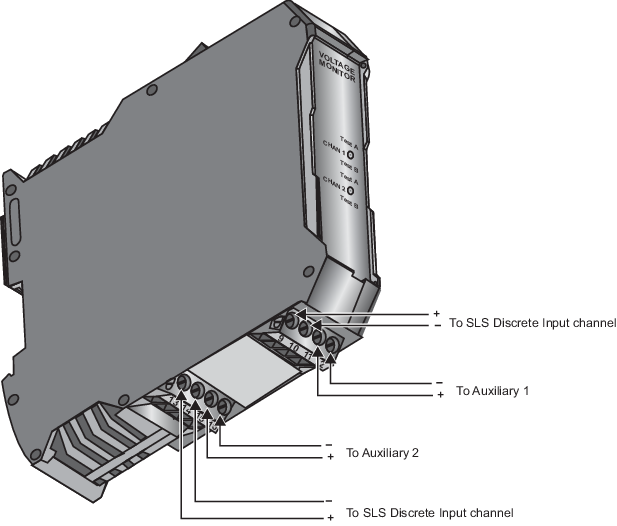

Figure: Voltage Monitor bottom view
