Installation notes
This terminal block is used to terminate wiring for the following

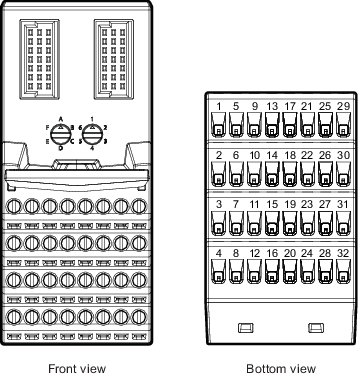

S-series cards. Set the key on the terminal block before installing a card onto
the terminal block.
- DI 32-channel 24 VDC dry
contact - set the key to B3.
- DO 32-channel 24 VDC
high-side - set the key to B4.
- Pulse count input - set
the key to C6.
- Sequence of events - set
the key to C5.
