Baseplate Migration Panels specifications

Baseplate Migration Panels can be installed with and without the CHARM labeling component.

Specifications

Table: Baseplate Migration Panels specifications
Item Specification

Capacity

Two baseplates. Each baseplate can hold up to 12 CHARMs.

CHARM Baseplate specifications

Refer to CHARM Baseplate specifications and I.S. CHARM Baseplate specifications

Dimensions

Refer to the images following this table.

Extender cable specifications

Refer to CHARM Column Extenders and cable specifications

Mounting

19 inch (48.26 cm) EIA rails

3 Rack Units (U) high

Dimensions

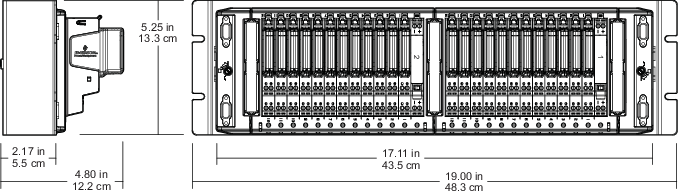

Figure: Dimensions for the standard CHARM Baseplate Migration Panel without labels

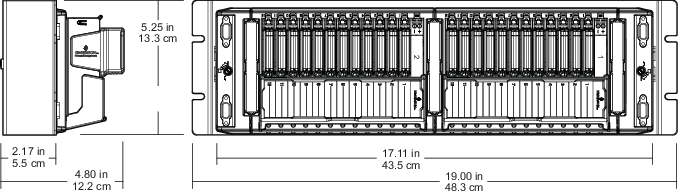

Figure: Dimensions for the standard CHARM Baseplate Migration Panel with labels


The DI 120 VAC isolated Plus CHARM is larger than standard CHARMs.

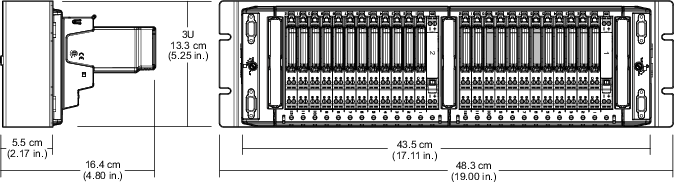

Figure: Dimensions for CHARM Baseplate Migration Panel holding a DI 120 VAC isolated Plus CHARM without labels

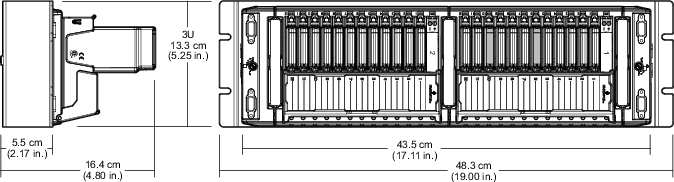

Figure: Dimensions for CHARM Baseplate Migration Panel holding a DI 120 VAC isolated Plus CHARM with labels

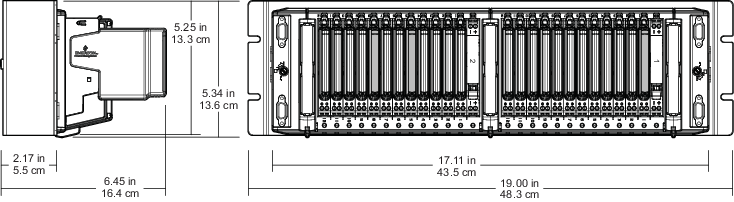

Figure: Dimensions for the I.S. CHARM Baseplate Migration Panel without labels


This figure shows the dimensions for the I.S. CHARM Baseplate Migration Panel with the CHARM labeling component. The dimensions differ when the labeling component is installed.

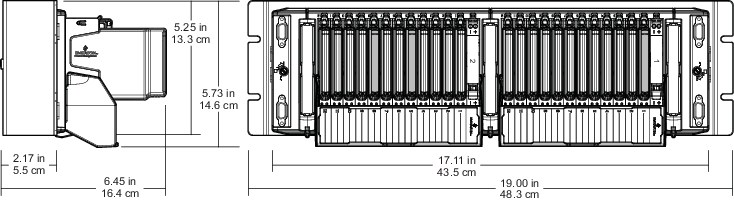

Figure: Dimensions for the I.S. CHARM Baseplate Migration Panel with labels
