Installation notes
- The I.S. CHARM Baseplates hold I.S. CHARMs and install directly onto a vertical T-type DIN rail. I.S. CHARM Baseplates connect to the CHARMs I/O carrier and to other I.S. CHARM Baseplates through connectors on the baseplates.
- A Separation Wall must be installed on every I.S. CHARM Baseplate.

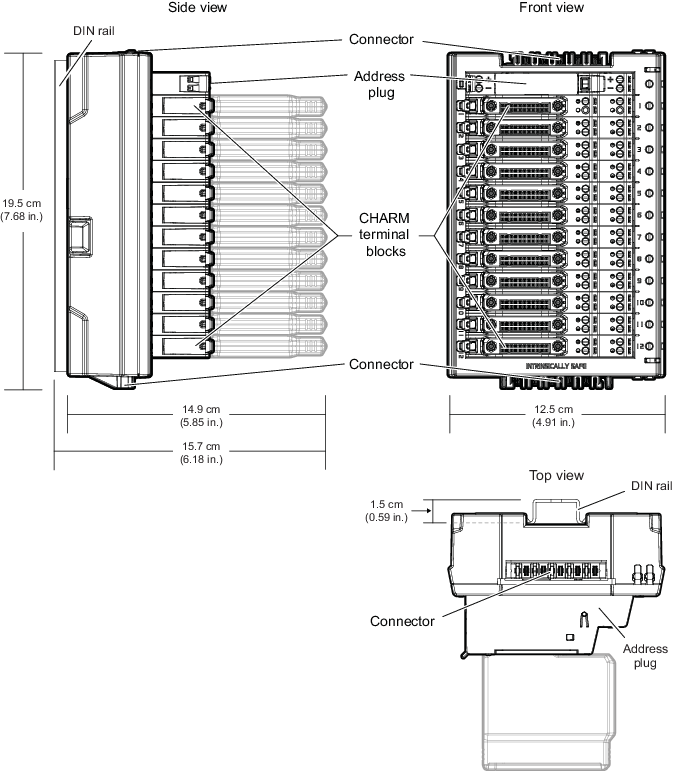

- Each I.S. CHARM Baseplate holds one Address plug and up to 12 I.S. CHARM terminal blocks holding I.S. CHARMs.

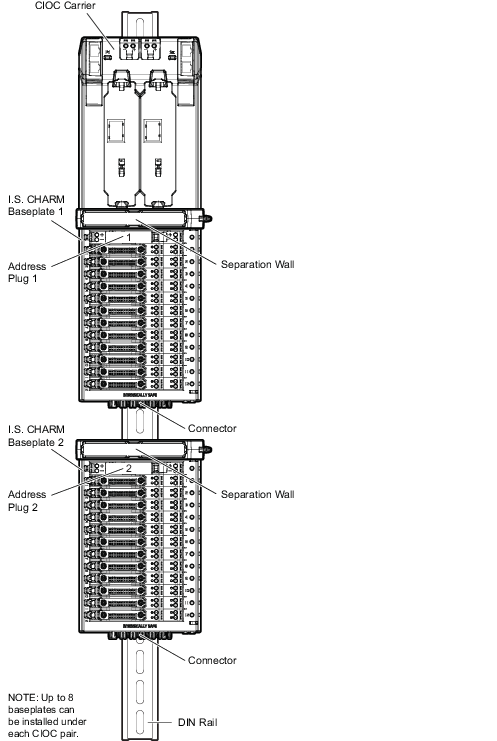

- Connect the I.S. CHARM Baseplate with Address Plug 1 to the CHARMs I/O carrier as shown in Figure: Connected I.S. CHARM Baseplates.
- Install I.S. CHARM Baseplates in sequential order under the CHARM I/O carrier based on the Address Plug installed on the baseplate.
- Up to eight I.S. CHARM Baseplates can be installed under one CHARM I/O carrier.
