| Number of channels
|
Eight
|
| Output range
|
20 VAC to 250 VAC
|
| Output rating
|
- 1.0 A continuous
per channel (inrush 5 A for < 100 ms; 20 A for < 20 ms)
- 3.0 A maximum per
card
|
| Off state leakage
|
2 mA maximum at 120 VAC, 4 mA maximum at 230
VAC
|
|
Configurable channel types
|
| Discrete output
|
If FAIL_ACTION_MODE is Hold last value
(default): Output stays in last state submitted by the controller.
|
| If FAIL_ACTION_MODE is Go to configured
failure action mode: Output is driven to the configured faultstate value.
|
| Momentary output
|
If FAIL_ACTION_MODE is Hold last value
(default): Output finishes current pulse.
|
| If FAIL_ACTION_MODE is Go to configured
failure action mode: Output is driven to the configured faultstate value and
the channel is re-configured as a latched output.
|
| Continuous pulse output
|
If FAIL_ACTION_MODE is Hold last value
(default): Output continues pulsing.
|
| If FAIL_ACTION_MODE is Go to configured
failure action mode: Output is driven to the configured faultstate value and
the channel is reconfigured as a latched output.
|
| LocalBus current (12 VDC nominal), per card
|
100 mA typical 150 mA maximum
|
| Field circuit power, per card
|
3.0 A at 120 VAC or 230 VAC per I/O
Interface
|
| Field power per channel
|
.375 mA at 1 A maximum per channel
|

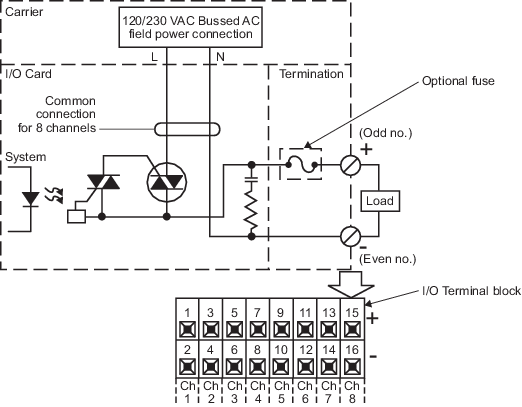

| Optional fuse
|
2.0 A (inrush 5A for <10 ms at 0.1% duty
cycle)
|
| Heat dissipation
|
5.4 W
|
| Isolation
|
Each channel is optically isolated from the
system at 250 VAC.
|
| Mounting
|
Assigned slot of I/O carrier
|
