Installation notes

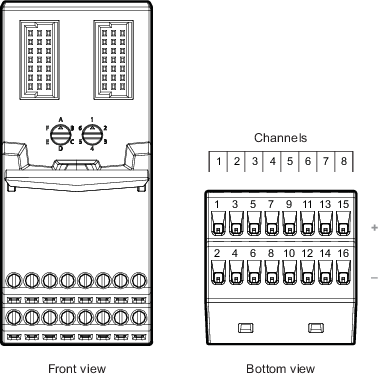

This terminal block is used to terminate wiring for the following S-series cards. Set the key on the terminal block before installing a card onto the terminal block.
- AI 8-channel 4-20 mA HART - set the key to A1.
- AO 8-channel 4-20 mA HART - set the key to A4.
- DI 8-channel NAMUR - set the key to B1.
- DI 8-channel 24 VDC isolated - set the key to B2.
- DI 8-channel 120 VAC dry contact - set the key to E1.
- DO 8-channel 24 VDC high-side - set the key to B6
- DO 8-channel 24 VDC isolated - set the key to B5.
- DO 8-channel 120/230 VAC high-side - set the key to F1.
- Thermocouple / mV input - set the key to C1.
