Installation notes
- The Ethernet I/O Card (EIOC) is used to easily and securely integrate TCP/IP-based data into a DeltaV system.

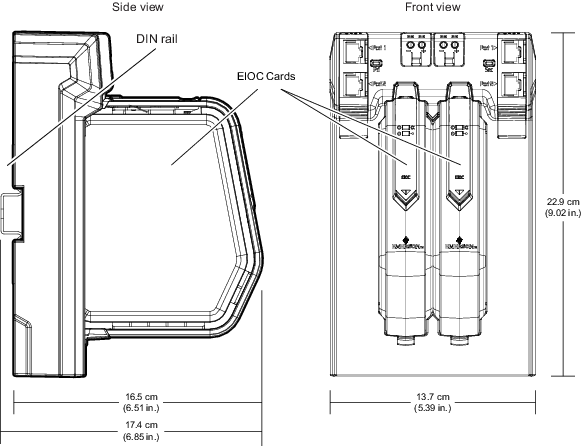

- The simplex or redundant Ethernet I/O Card mounts in the Dual Universal Carrier. A simplex Ethernet I/O Card can install in either slot of the carrier. If a simplex EIOC is used, cover the open slot with a protection cover.
- The DIN rail-mounted Dual Universal Carrier holds simplex or redundant EIOCs. The Dual Universal Carrier provides redundant 24 VDC power to the EIOC.
- The EIOC communicates with M and S-series controllers.
Specifications
| Item | Specifications |
|---|---|
| Input power requirement (supplied through the System Power Supply (24 VDC) | +24 VDC ±10% at 325 mA maximum for simplex, 575 mA maximum for redundant |
| Heat dissipation | 7 W simplex; 13 W redundant |
| Mounting | Horizontally in either slot of the Dual Universal Carrier |
