Installation notes
- The Dual Universal Carrier holds multiple card types and installs on horizontal DIN rails.
- The redundant Ethernet I/O Card (EIOC) can plug into the slots on the Dual Universal Carrier.

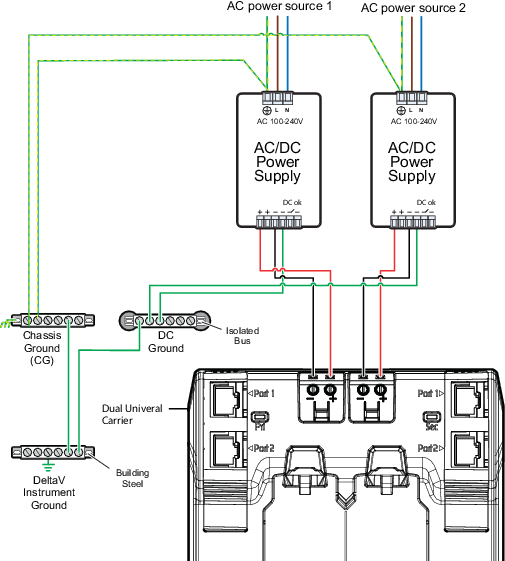

- The Dual Universal Carrier provides redundant 24 VDC power for the cards. Refer to Figure: Powering the Dual Universal Carrier.

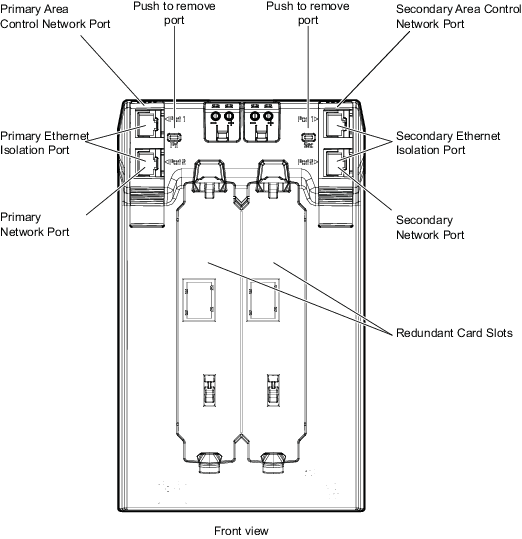

- The Dual Universal Carrier houses a primary and secondary Ethernet Isolation Port (EIP). For the redundant EIOC, each EIP consists of an Area Control Network port for connections to the DeltaV Area Control Network and a Device Network Port for connections to the intelligent device network.
Specifications
| Item | Specification |
|---|---|
| Capacity | One or two redundant cards such as the EIOC |
| Input power (redundant) | +24 VDC ±10% at 1 A maximum |
| Redundant Ethernet connections (primary and secondary) | Copper twisted pair: 10/100BASE-TX with RJ45 connectors; full duplex operation. |
