Installation notes

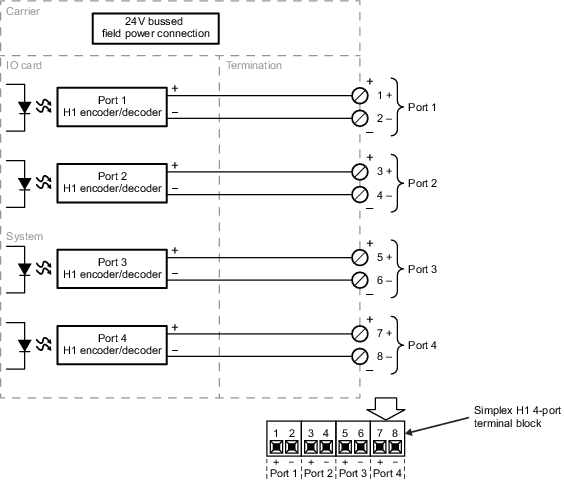

- The Simplex H1 4-port Plus Terminal Block is recommended to provide screw terminations for field wiring for the Fieldbus H1 4-port Plus card in simplex mode.

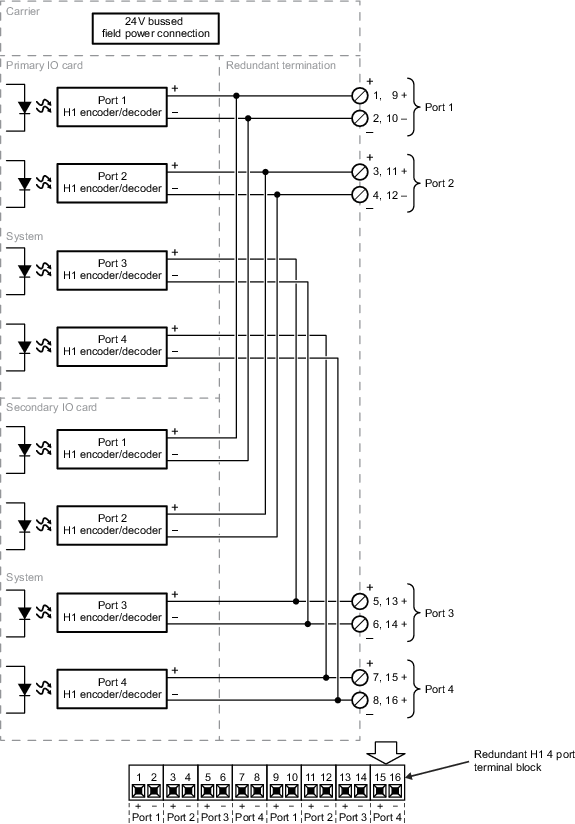

- The Redundant H1 4-port Plus Terminal Block is recommended to provide screw terminations for field wiring for the Fieldbus H1 4-port card in redundant mode.
- This card requires an S-series controller.
Specifications
|
Item |
Specification |
|---|---|
|
Number of ports |
Four |
|
Port type |
Foundation Fieldbus H1 - 31.25 Kbit/second |
|
LocalBus current (12 VDC nominal) per card |
300 mA typical |
|
Field circuit power per card |
None |
|
Fieldbus power |
9 to 32 VDC, 12 mA per port |
|
Heat dissipation |
4.4 W simplex and redundant |
|
Isolation |
Each port is isolated from the system and from each other and factory tested to 1500 VDC. |
|
Mounting |
Assigned slot of I/O carrier |
