Profibus DP card specifications

Installation notes

The Profibus DP terminal block is recommended to provide terminations for field wiring for the Profibus DP card.
The Redundant Profibus DP terminal block is recommended to provide terminations for field wiring for the redundant Profibus DP card. For simplex or redundant applications, when the termination is in the OUT position, pins 1 and 3 and 4 and 6 can be used. When the termination is in the IN position, only pins 1 and 3 can be used.
Use shielded cables to connect the Profibus DP card to slave devices. Connect the shield of each wire to the corresponding shield terminal on the Profibus DP Terminal Block.
Connect the Profibus DP cable shield to earth ground at only one point on the link. If the cable shield is grounded at the Profibus DP card, connect the ground wire to shield terminal 8 on the Profibus DP Terminal Block.
This card requires an S-series controller.

Table: Profibus DP card specifications
Item	Specification
Number of Ports	One
Port Type	Profibus DP
LocalBus current (12 VDC nominal), per card	Simplex and redundant: 400 mA typical 600 mA maximum
Field circuit power, per card	None
Heat dissipation	7.2 W
Mounting	Assigned slot of I/O carrier

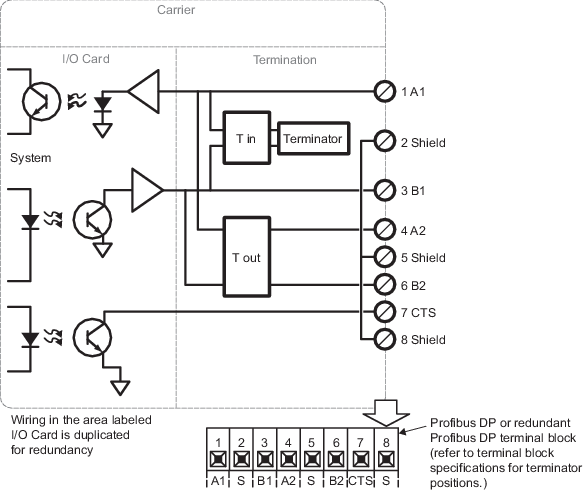

In the following wiring diagram, the wiring in the area labeled I/O card is duplicated for a redundant card.

Figure: Simplex or redundant Profibus DP card wiring diagram
