Installation notes
- This terminal block is used to terminate wiring for the S-series Profibus DP card. Set the terminal block key to D3 before installing the card.

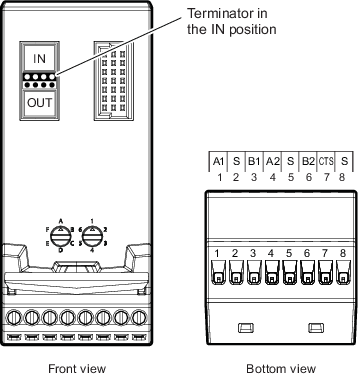

- There are two terminator positions on the front of this terminal block. Terminator OUT is the bottom position; terminator IN is the top position. The terminal block is shipped in the IN position.
- To set a terminator position,
gently tug on the jumper to remove it and then push the jumper onto a
terminator position. The terminal block's location on the segment determines if
the terminator is in the IN or OUT position:
- If the terminal block is at the end of the segment, the terminator should be in the IN position. A terminator in the IN position provides termination for the segment. This type of termination is usually made with a single cable.
- If the terminal block is at the middle of the segment, the terminator should be in the OUT position. A terminator in the OUT position provides a connection to other devices on the segment through the terminal block. These connections are typically made with two cables that run in two different directions (for example to two cabinets). The OUT position can also be used to connect two cables to a redundant DP/PA segment coupler for line redundancy.
- When terminal blocks are located either at the middle of a segment or at the end of a long, single cable run, fiber-optic converters could be required in the line to provide isolation between the different locations. For example, a fiber-optic converter could be used to ensure that two cabinets installed in different buildings do not affect each other in terms of potential differences, surges, or hazardous area classification.
- When redundant DP/PA segment couplers are used for line redundancy or full duplex fiber-optic converters are used to isolate sections of the Profibus segment, be sure to properly configure status handling for the Profibus slaves in the control strategy. For example, be sure to configure the application software to determine the integrity and status of the slave device and the status of the communication to and from the slave device and the master.
